Tripod Joint SMSTRD8055

SKU: SMSTRD8055
Available on request²

² up to 15 days for production

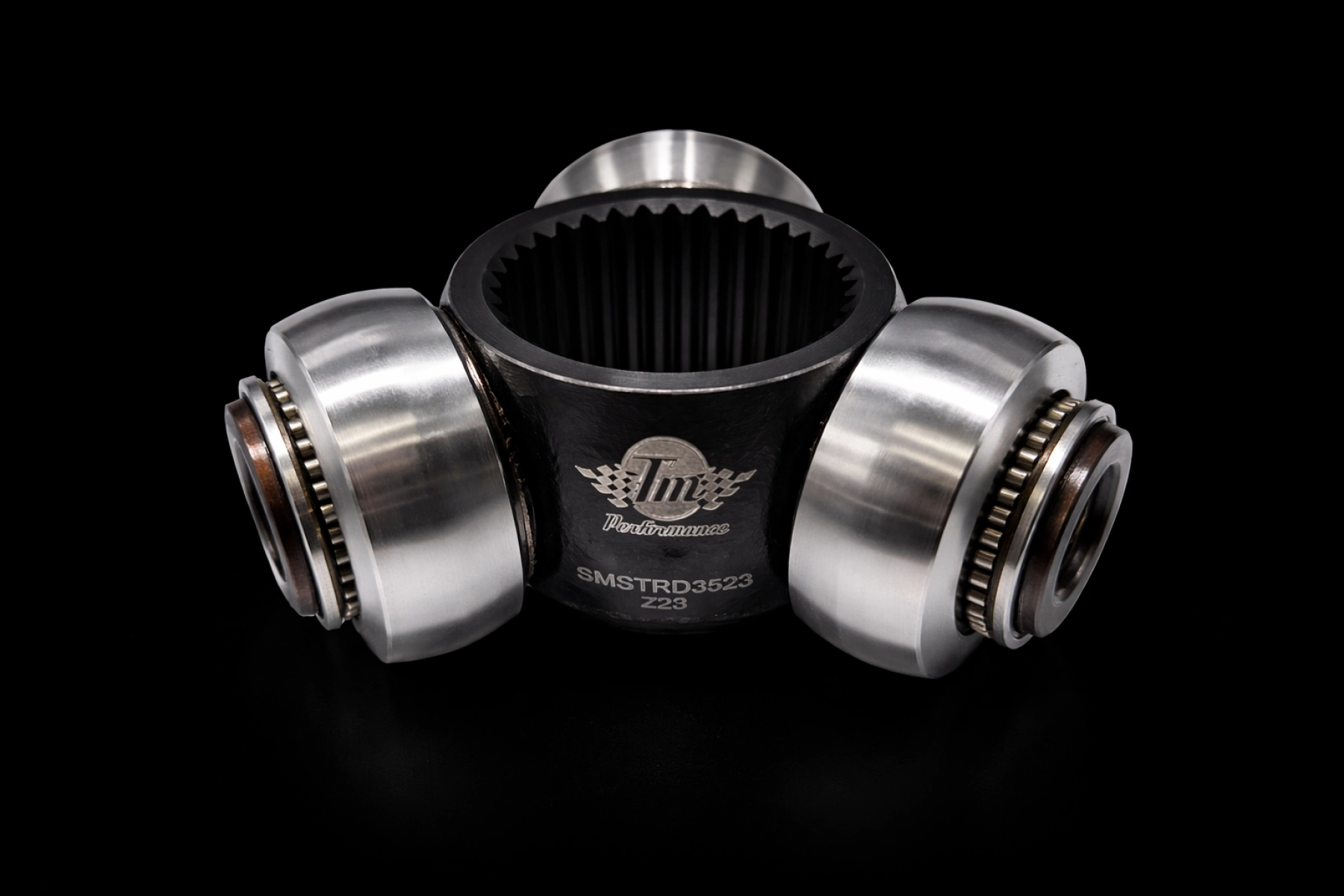

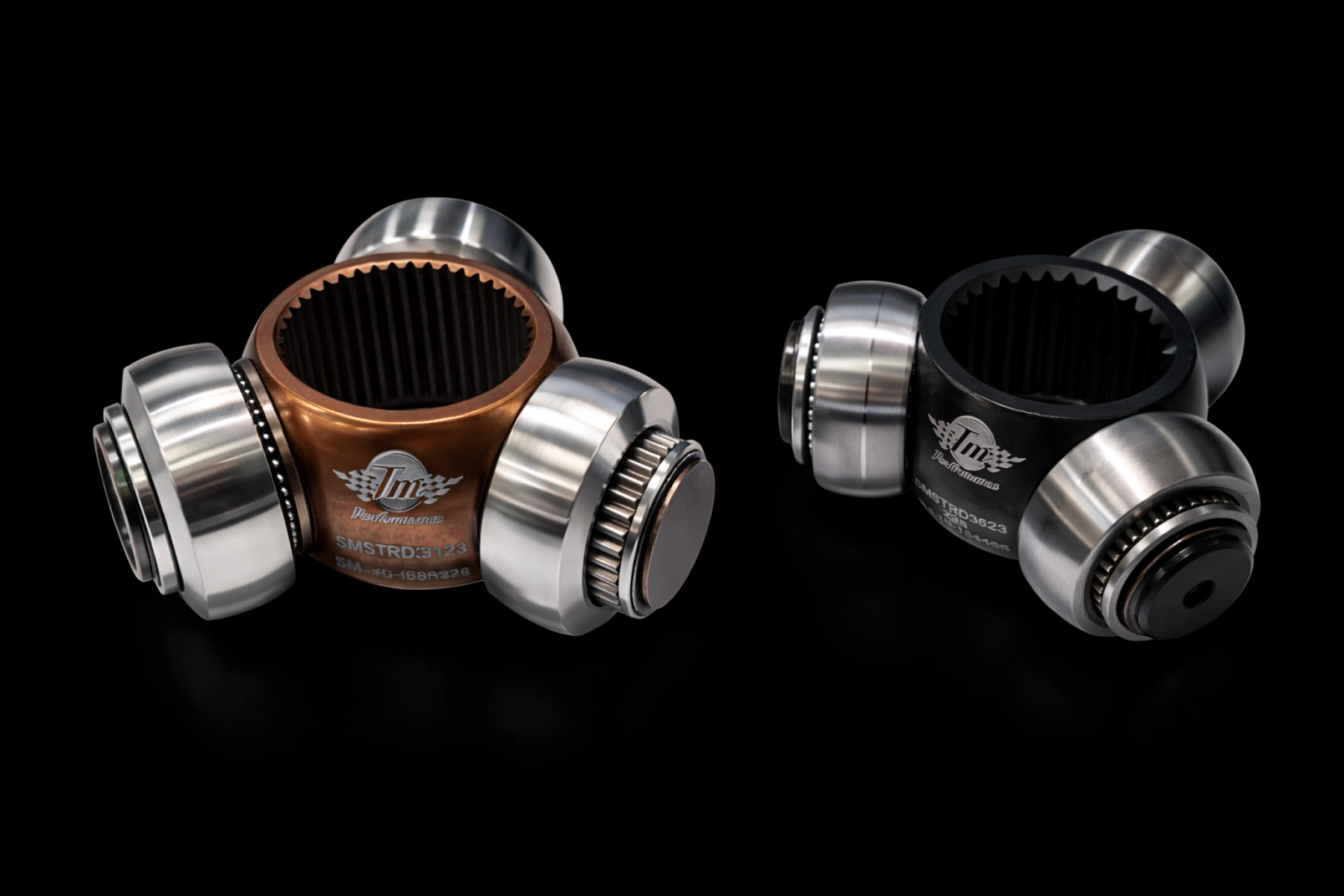

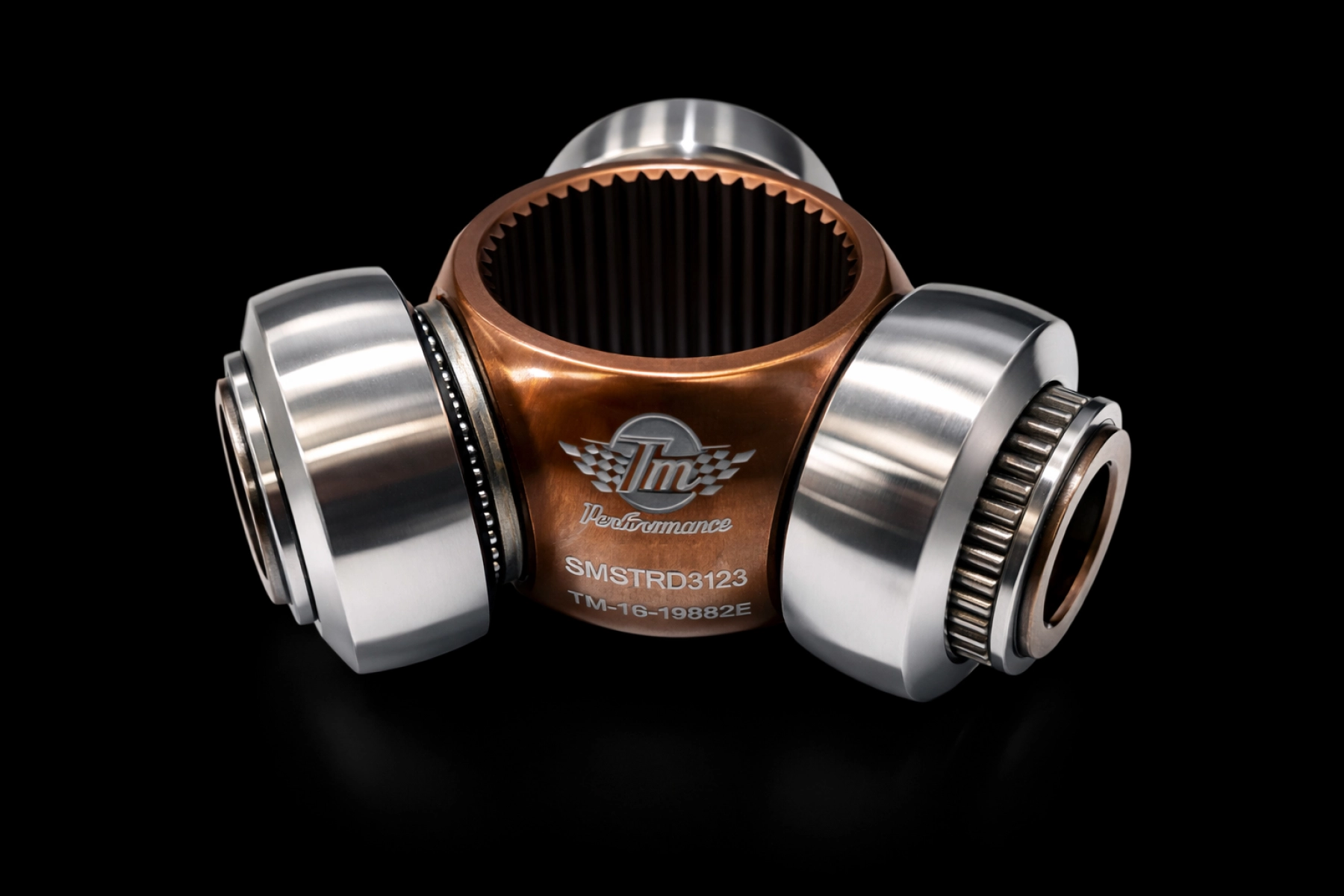

Tripod joint for driveshaft and transmission systems.

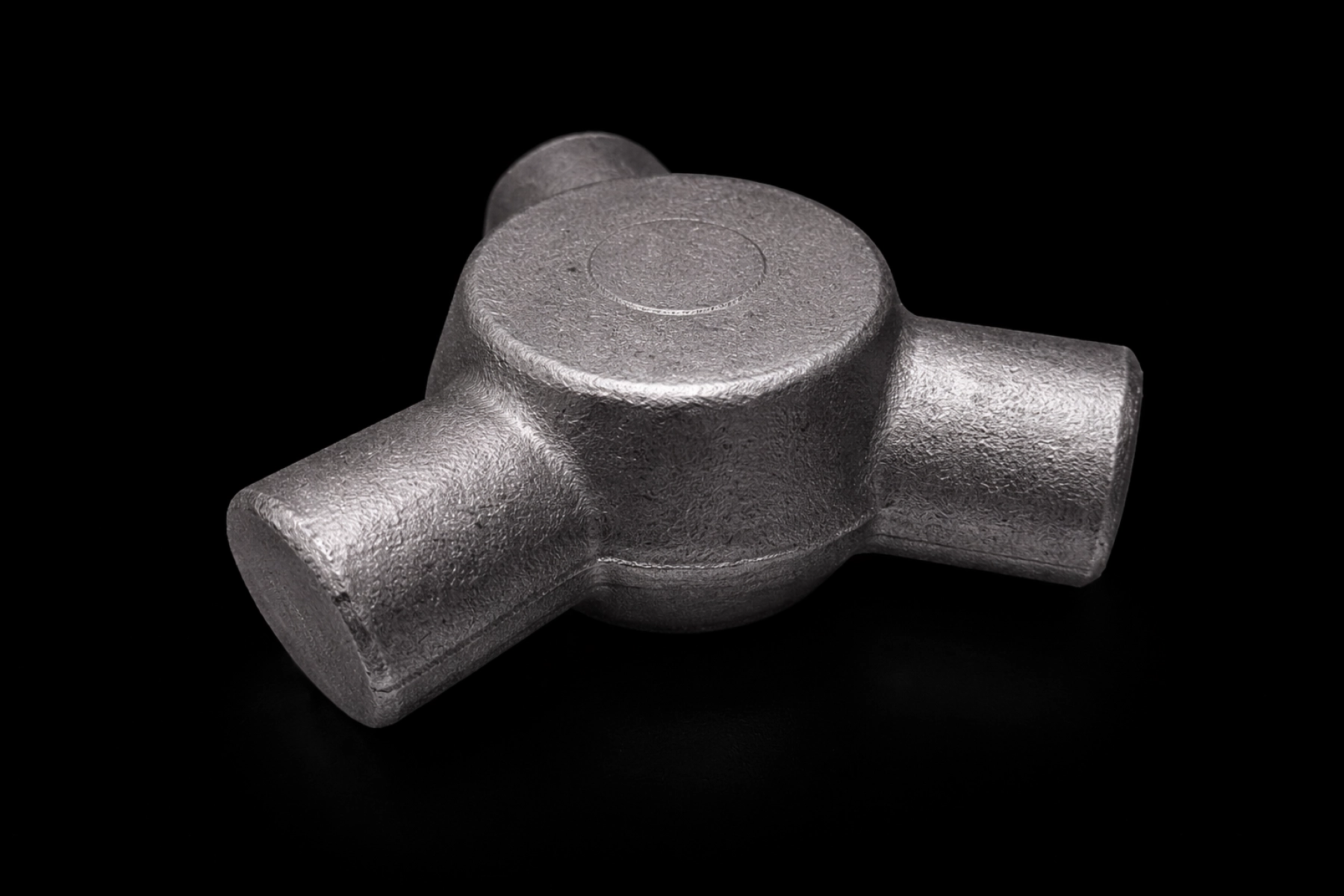

Manufactured with precision machining and high-strength materials to ensure reliability and long service life even under high load conditions.
The tripod design allows smooth torque transmission while reducing vibration and friction during operation.
The component must be selected according to the technical dimensions specified in the product specifications.

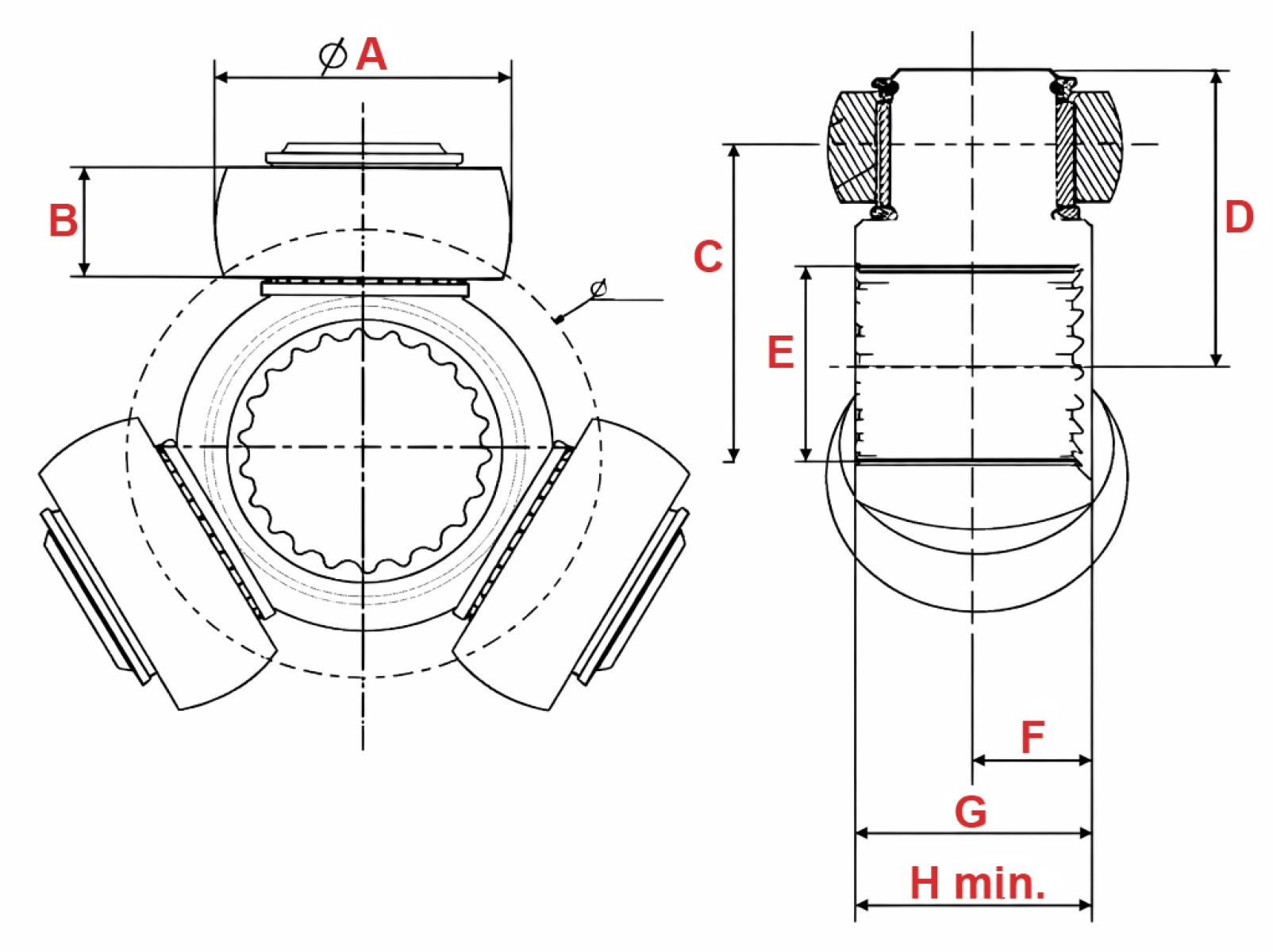

Technical Specifications

Code SMSTRD8055
A 38 mm
B 16.5 mm
C 61 mm
D 42.2 mm
E -
F -
G 32 mm
H min. -
Number of Teeth 43
Module 1,058
Pressure Angle 45°
Torque -

Universal - Compatible with all vehicles
