Tripod Joint SMSTRD1047

SKU: SMSTRD1047
Available on request²

² up to 15 days for production

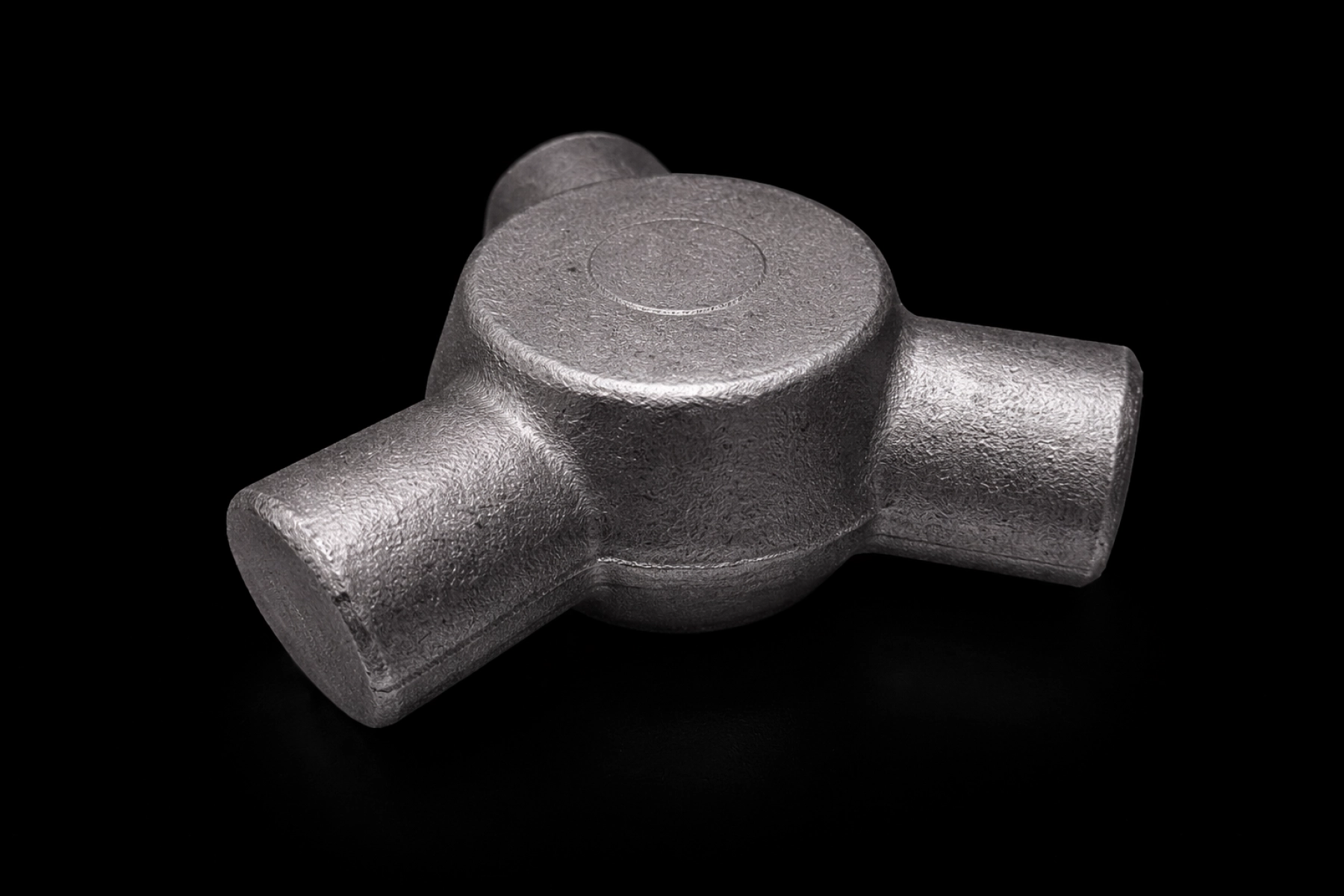

Tripod joint for driveshaft and transmission systems.
Manufactured with precision machining and high-strength materials to ensure reliability and long service life even under high load conditions.
The tripod design allows smooth torque transmission while reducing vibration and friction during operation.
The component must be selected according to the technical dimensions specified in the product specifications.

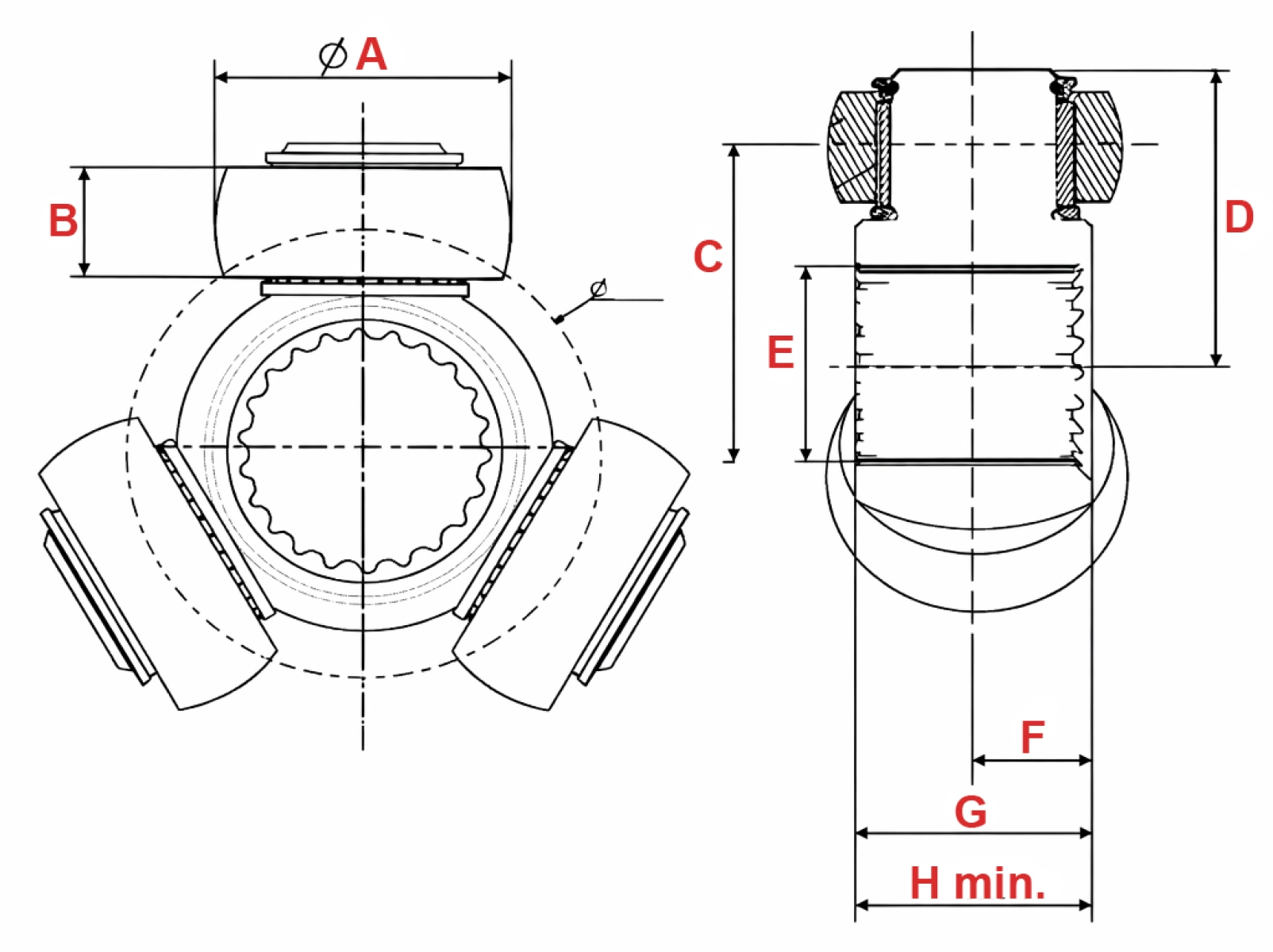

Technical Specifications

Code SMSTRD1047
A 29.95 mm
B 12 mm
C 46.4 mm
D 32.8 mm
E 23.5 mm
F 12 mm
G 22.6 mm
H min. 23.5 mm
Number of Teeth 22
Module 1,058
Pressure Angle 45°
Torque 2000 Nm

Universal - Compatible with all vehicles
